Glaval Legacy

glaval legacy bus

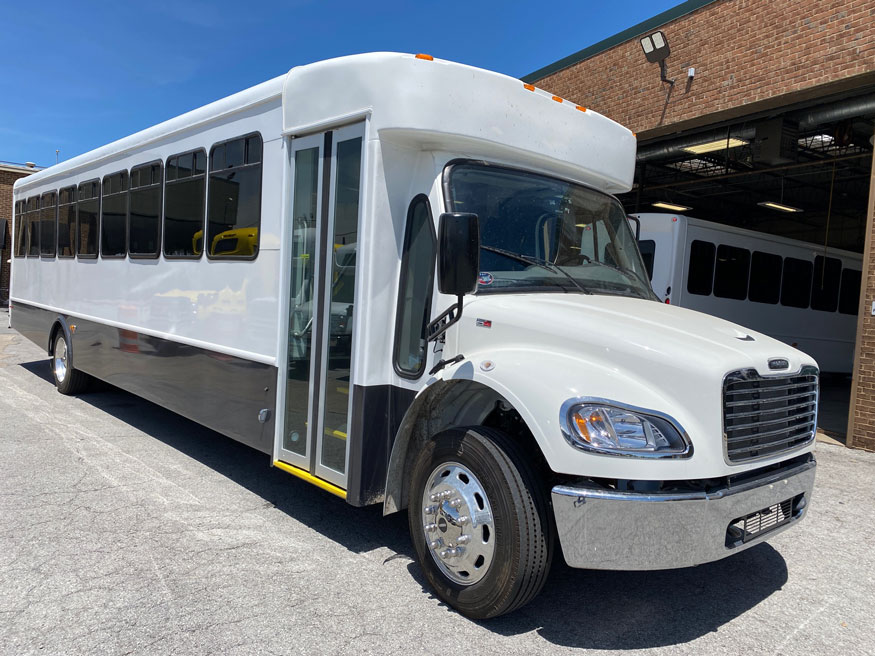

The Glaval Legacy bus is powered by the world famous Cummins 6.7L diesel engine, on the heavy-duty Freightliner S2C chassis. The Legacy also uses the tried and true Allison Transmission and is built with rear air-ride suspension. The bus can carry up to 45 passengers including the driver. As with it’s Glaval brethren, the Legacy features “steel-safe” construction throughout offering rugged durability as well as and outstanding traveling experience.

The Glaval Legacy is a beautiful bus that is sure to stand out from the competition. If your organization has special needs passengers, the Legacy can be outfitted with full ADA compliant wheelchair lift and wheel chair stations. Whether you need to carry all ambulatory passengers or you need to add wheelchair stations, the Glaval Legacy can meet the most demanding applications.

Glaval Legacy Chassis Specifications

  • Chassis: Freightliner S2C
  • Engine: Cummings 6.7L V8 Diesel
  • Engine Rating: 240 hp; 560 lb-ft
  • GVWR: 26,000 lbs
  • Alternator: 320 Amp
  • Fuel System: 65 gal or 100 gal depending on wheelbase and luggage
  • Alternate Fuel: B-20 “BioDiesel” capable
  • Transmission: Allison 2200 PTS w/ Park Pawl 5 Speed
  • Parking Brake: Air-operated w/push and pull knob on dash
  • Wipers: Intermittent single wiper motor
  • Battery: 2 Batteries 1900 CCA total
  • Cruise Control: Standard electronic
  • Fast Idle: Standard
  • Steering: Adjustable tilt/telescoping
  • Wheels: Dual rear wheels 22.5″, six 10-hole disc, 22.5″ x 7.5″ RW steel painted white
  • Tires: Michelin XZE 235/80R 22.5 14 ply
  • Stereo: Optional
  • Tow Hooks: Front frame mounted
  • Driver’s Seat: Bostrom Talladega 910 highback Air Suspension
  • DEF Tank: 10 gal
  • Rear Axle Ratio: 5.13 to 1
  • Air System: DV-2 Autodrain valve w/ heater
  • Front Axle Rating: 10,000 lb
  • Front Spring: 10,000 lb Tape Leaf
  • Rear Axle Rating: 19,000 lb
  • Rear Spring: 21,000 lb Air-Ride Air Liner
  • Door Handles/Locks: Manual
  • Aux Power: In dash 12-Volt
  • Front Bumper: OEM Chrome
  • Windshield Washer: Reservoir 1 Gallon under hood

Glaval Legacy Model Specifications

  • Wheelbase: 219″/259″/279″
  • Overall Length: 32’/35’/37’/40′ (Bumper to Bumper)
  • Overall Width: 96″
  • Overall Height: Approximately 129″
    (Excludes Escape Hatch or Roof A/C)
  • Front Overhang: 41-3⁄8″
  • Interior Height: 78-1/2″
  • Interior Width: 92″
  • Interior Floor Height From Ground: 46-1⁄2″
  • Aisle Width: 18″
  • Clear Door Opening: 30″
  • Ground to First Step: 11″
  • Step Riser: 9″
  • Step Tread: 9″
  • Step Width: 34″

Glaval Legacy Standard Conversion Features

  • “Steel-Safe” Constructed Floor, Roof and Sidewalls
  • Galvanized Steel Floor Frame
  • Galvanized Steel Stepwell
  • Galvanized, All Structure
  • 5/8″ Treated Plywood Flooring
  • Gray Koroseal Commercial Flooring w/Ribbed Aisle Cove Molding
  • Vacuum Laminated Construction, Side and Rear
  • Fiberglass Front Cap
  • 5-Piece ABS Rear Cap
  • Fiberglass Composite Roof
  • T-Slide Windows
  • Full View Curb Window
  • Electic Panel w/Diagnostic Fuses
  • LED Stepwell Lights
  • Exterior Heated Remote Mirrors
  • Flat Floor
  • Vinyl Clad Lauan Ceiling & Interior Sidewalls Full Track Seating
  • Curbside Entrance Modesty Panel & Stanchion
  • Rear Center Brake Light (LED)
  • Rear Mud Shield
  • Steel Rear Bumper (Powder Coated)
  • Window Drip Rails
  • White Exterior
  • Foamed In-Place Roof Insulation
  • Front End Alignment (Toe-In, Toe Out)
  • Under-Coating with Warranty
  • Flat Floor
  • 30″ Electric Door
  • All Exterior Lighting (LED)
  • OEM Battery Box w/Slide-Out Tray

5 year/100,000 mile limited conversion warranty. Specifications and options are subject to change without notice.

Glaval Legacy Paratransit Options

  • ADA Lighting (Lift and Door)
  • ADA Signs
  • Double Doors (Lift)
  • Belt Storage Box
  • Interlock System
  • Padding Kit
  • Surelok/Qstraint Tiedowns
  • Lift Package, Braun
  • Lift Package, Maxon
  • Lift Package, Ricon

Lift Package Includes: Single Door; Lift; Park Interlock; ADA Signs; Door Activated Lift and Entrance Lighting, Rear Exhaust (Rear or Roadside Exhaust Required on Rear Lift Models.)
